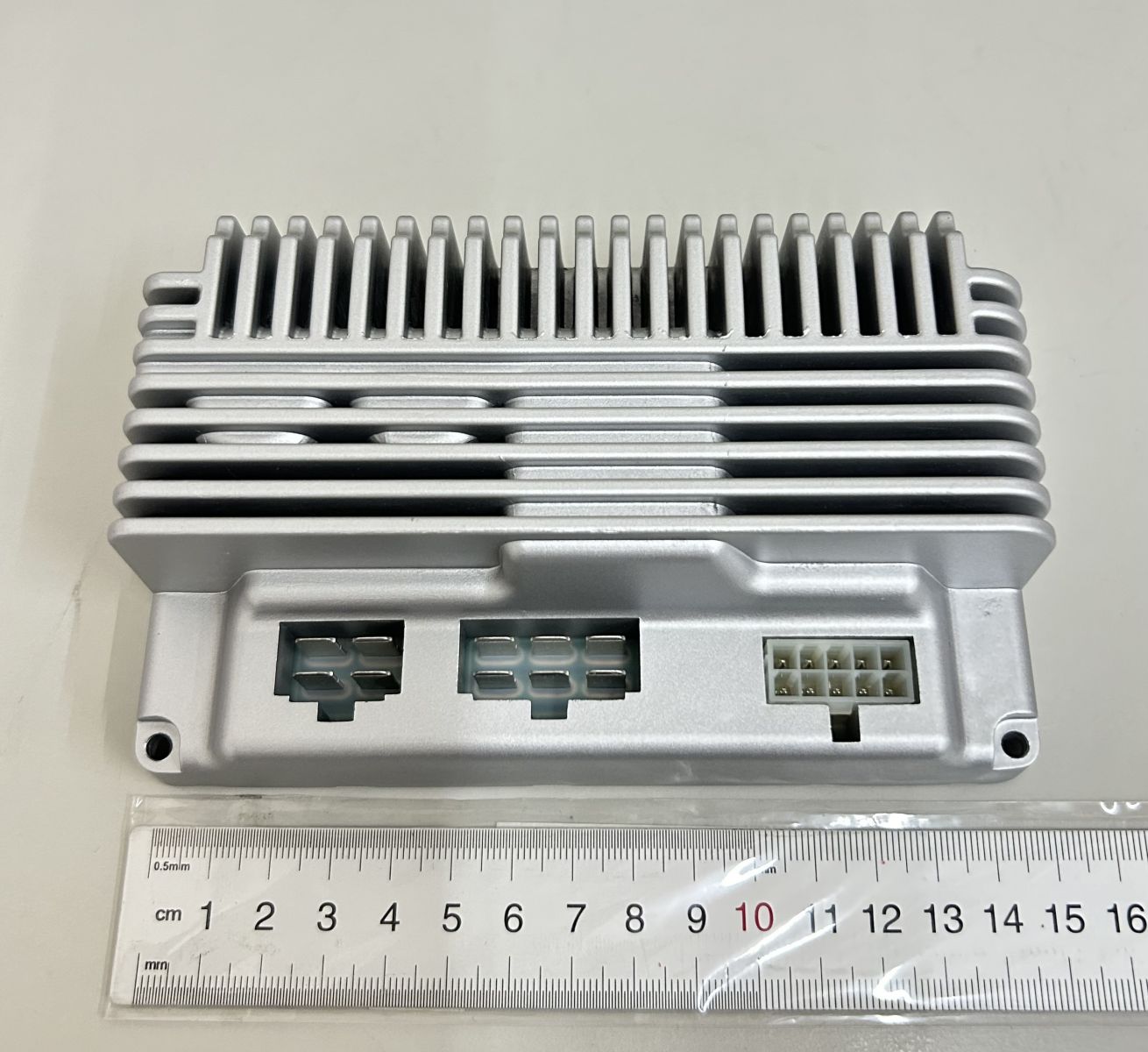

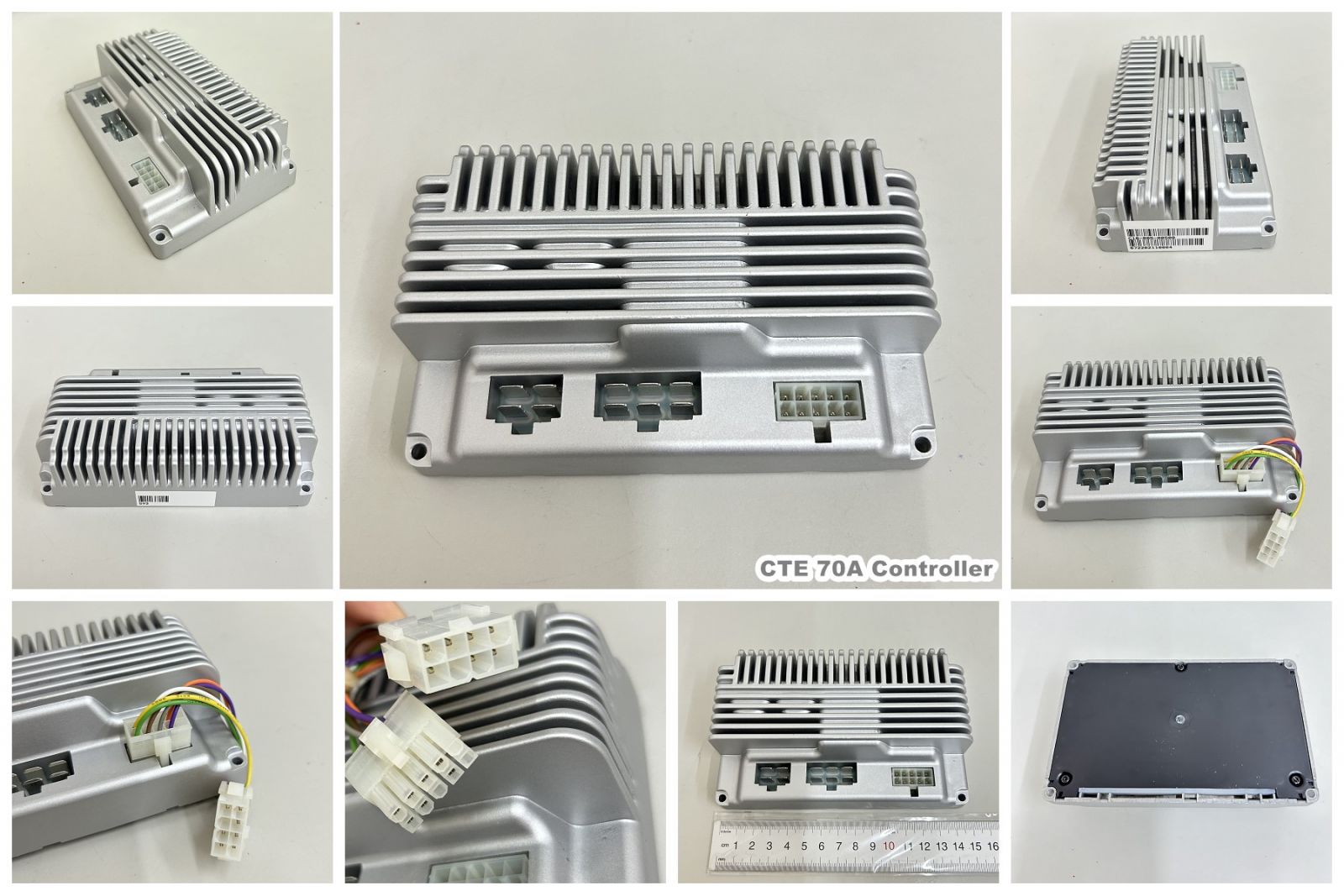

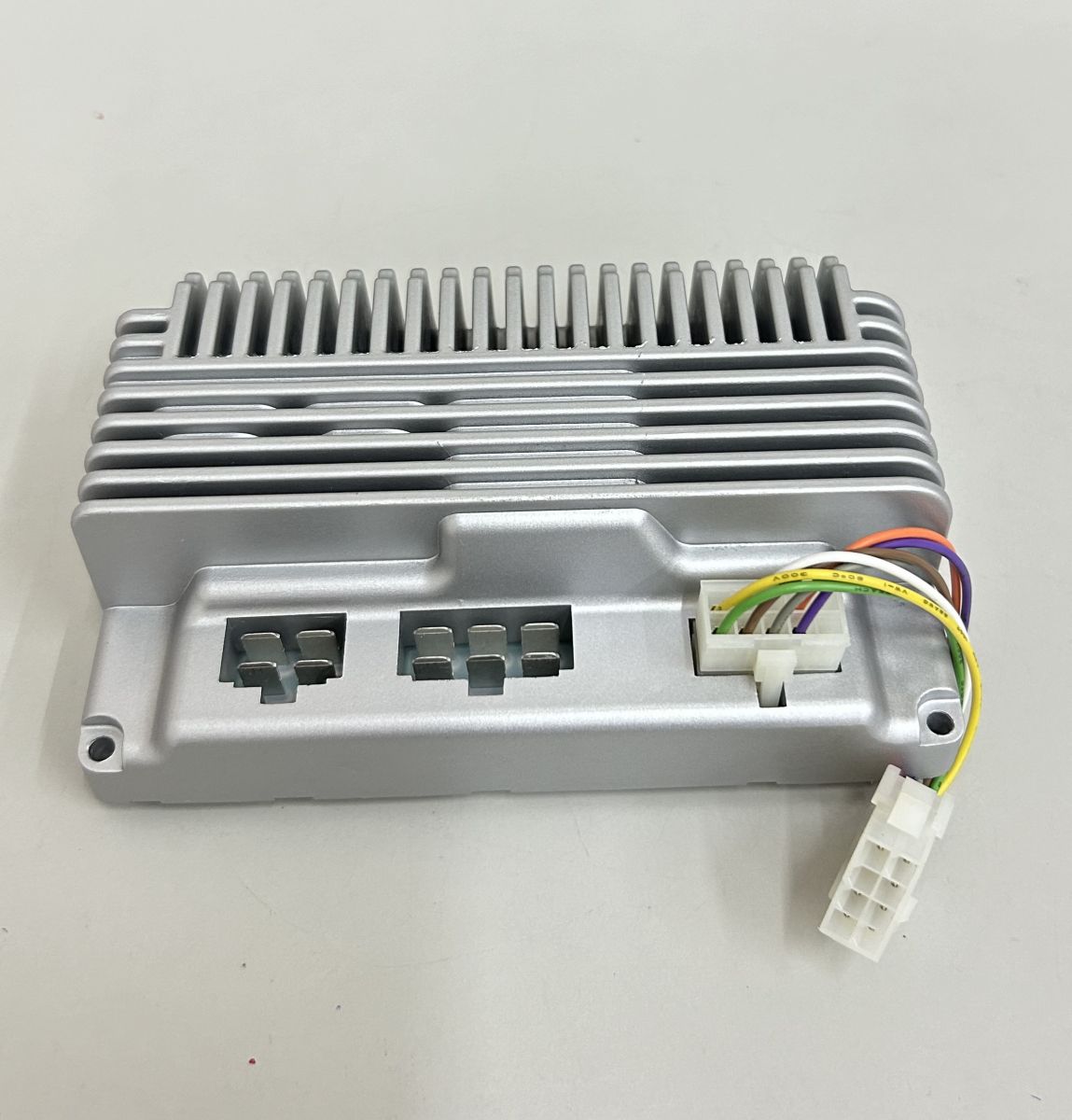

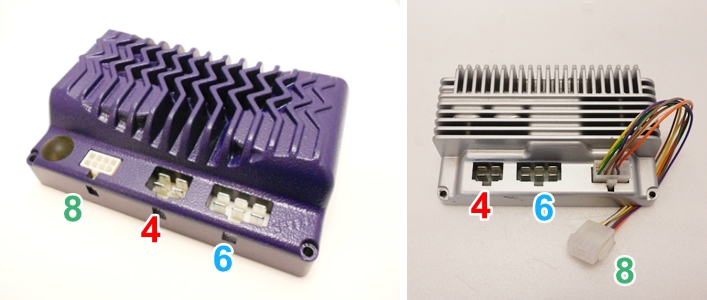

Product Specification ►Standard pack: one controller only without any wirings or connectors ►Case Material: Die-cast aluminum ►applicable to be replacement for Dynamic Rhino 70A controller ►Motor Type: Permanent magnet DC brushed motor with a solenoid controlled motor park-brake ►Armature Resistance: 5mΩ ~ 510 mΩ ►Park Brake Output: 1.3A max ►Nominal Battery Voltage: 24V ►Operating Voltage: 16V ~ 34.5V ►Nominal Current Limit: 70A ►Continues Output Current: 28A(70A controller) at 25°C ambient temperature ►Neutral Current: <45mA at 24V ►Sleep/power off current: <2mA/1mA ►External Speed Control: 5kΩ linear potentiometer or 0~5V ►Forward/Reverse Control: Bi-directional (wigwag) or Single direction with Forward / Reverse switch ►Motor/Park Brake Connection: AMP 4-way 250 series ►Control Lead Connection: TKP P6657I-10F or equivalent ►Power Lead Connection: AMP 6-way 250 series ►Operating Temperature: -25℃~50℃ ►Operating Humidity: 0~85% RH non-condensing ►Electromagnetic Compatibility: ISO7176-21 ►Performance & Safety: a boot must be fitted over control lead connector to meet IPX4 ►Dimension: 148 x 91 x 42.5 (mm) ►Weight: 580 g ►A connection wiring can be offered to easily replace a Dynamic Rhino 70A controller (DS72K01). ►Connection wiring: one side is a 8-pin terminal and the other is 10-pin (connected to the CTE controller).
►Our Client will receive a set as follows:
| ||||||||||||||||
