DR50-B01

Product Category：	Controllers
Product Type：	Dynamic Controllers
Price：	EXW Taiwan Unit Price
Description:
Dynamic R-Series 50A Mobility Scooter Controller

Product Specification

►Part No. DR50-B01 ( DR50-A01 is not available, cover difference only)

►Supply voltage, Brake voltage: 24V DC

►Operating voltage: 18~32V DC

►Peak current: 40 Amps

►Boost current: 10 Amps

►Boost duration: 5-10 seconds

►Charging current: 8 Amps RMS

►Material: Die-cast aluminum base with plastic cover (UL94 V-0 rating)

►Protection Rating: IPX5

►Operating Temperature: -25℃~50℃

►Dimensions: 131.5 x 72.5 x 40 (mm)

►Weight: 260g

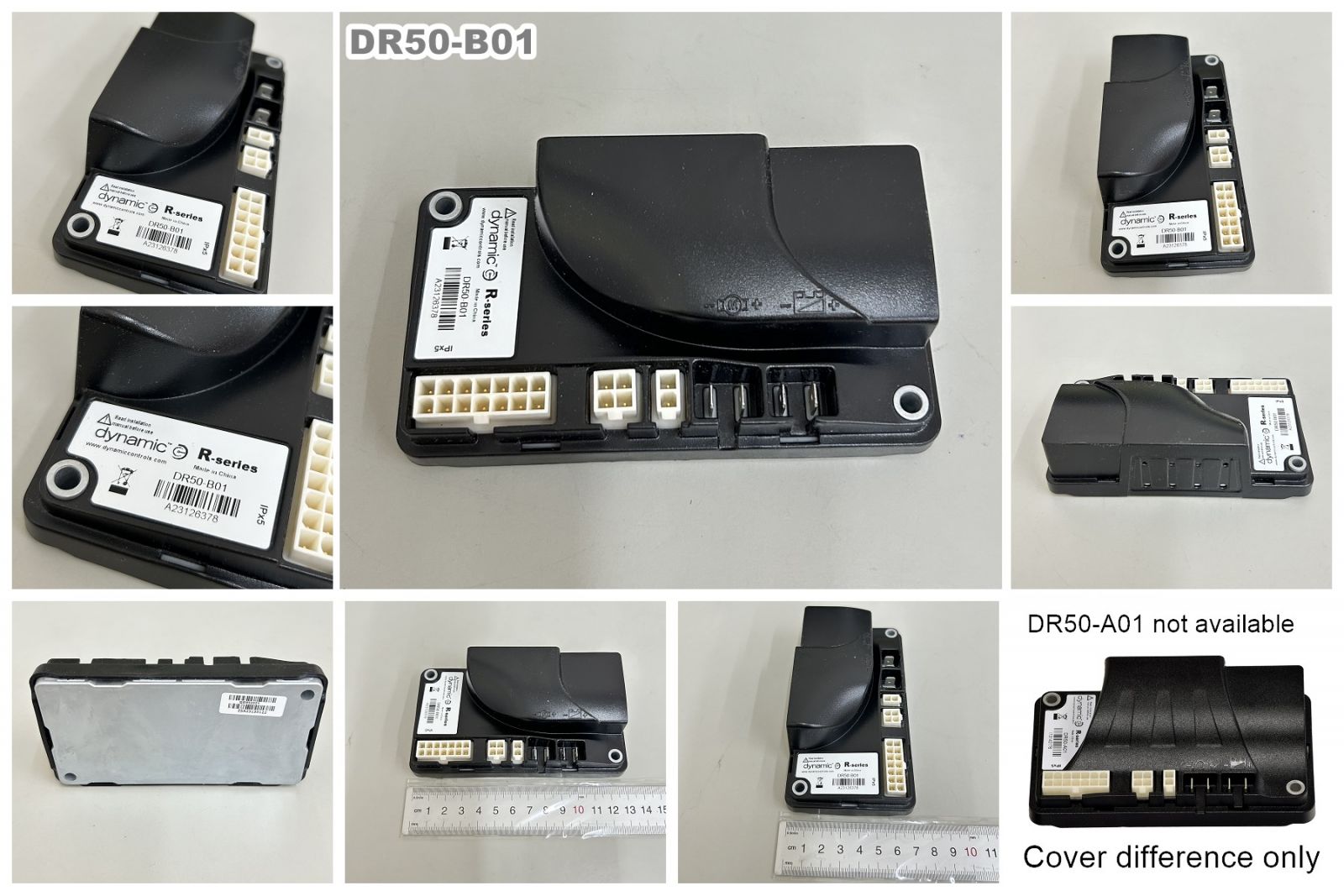

►DR50-B01

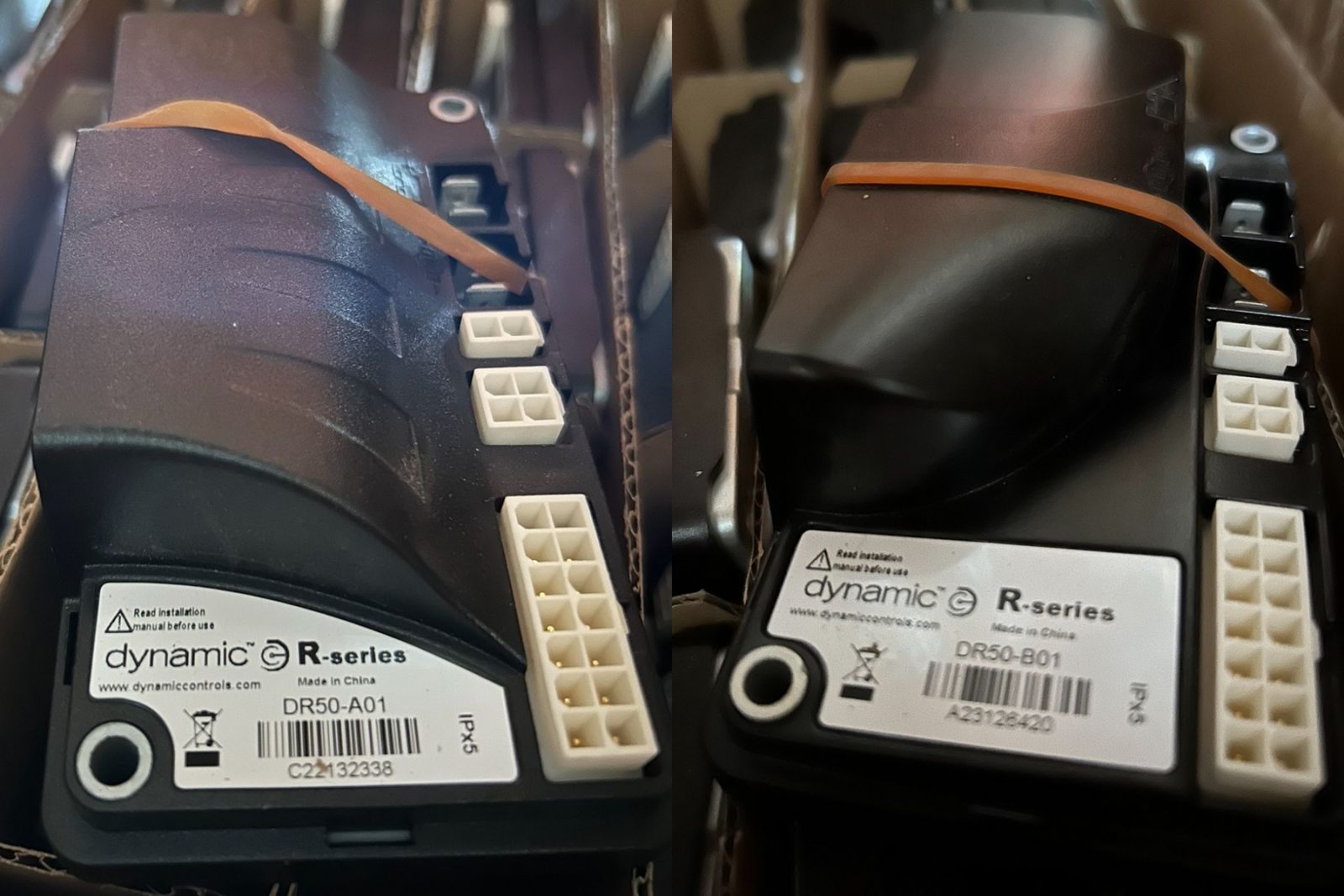

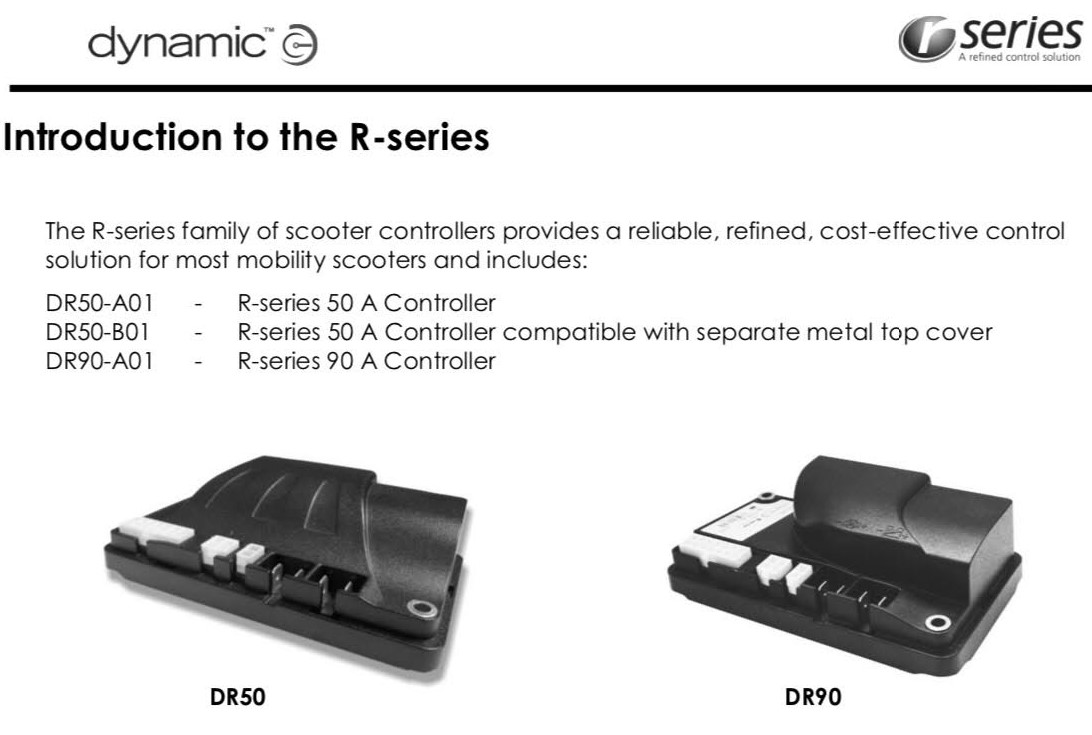

►DR50-A01 and DR50-B01 only the cover difference

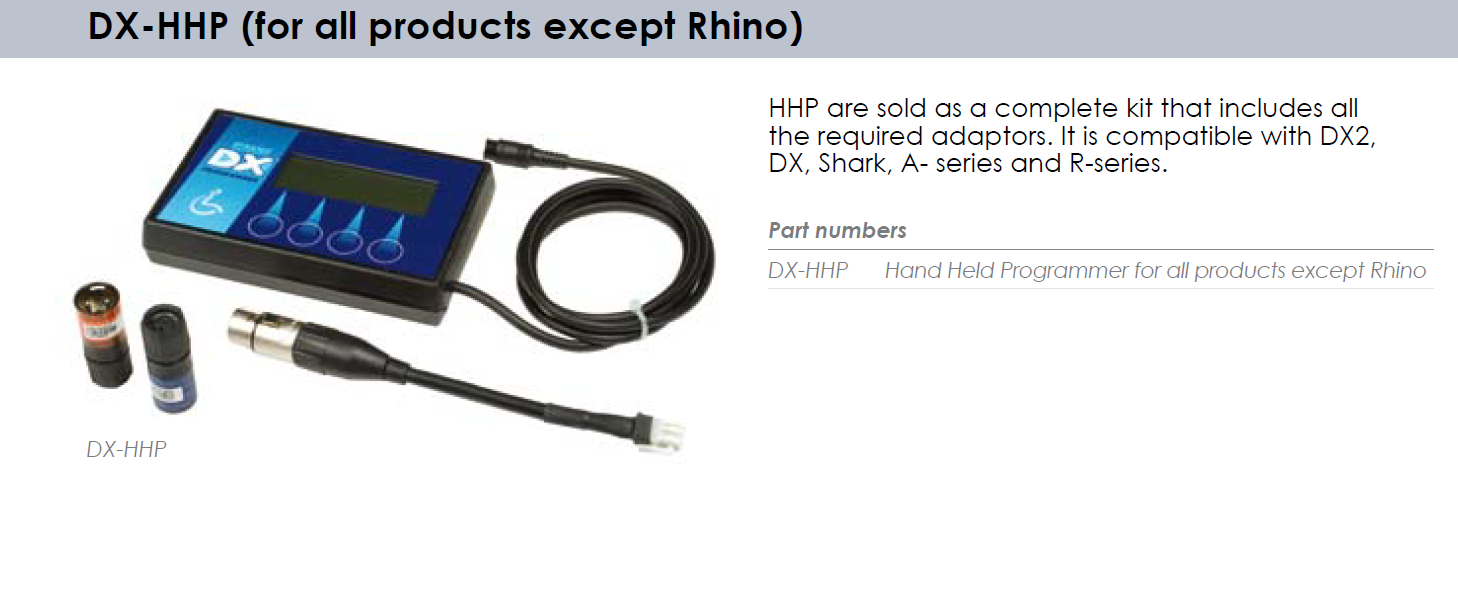

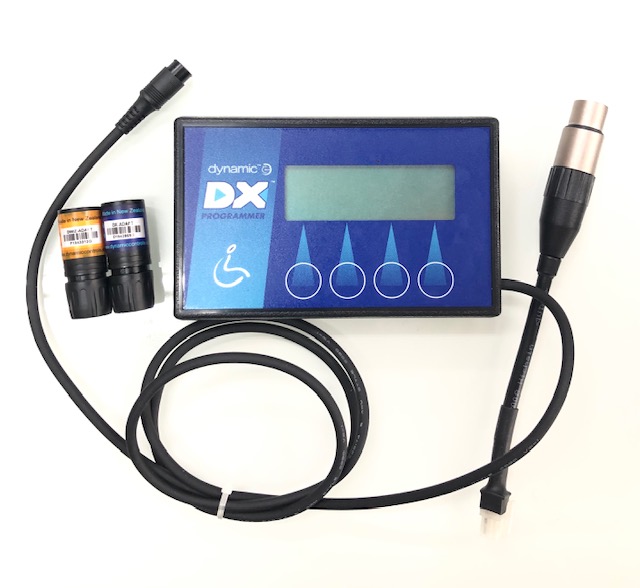

►Programming Tool, DX-HHP.
