CTE-5A
Product Category:Battery Chargers
Product Type:CTE Battery Chargers
Price:EXW Taiwan Unit Price
Description:
CTE 24V 5A Lead-Acid Battery Charger

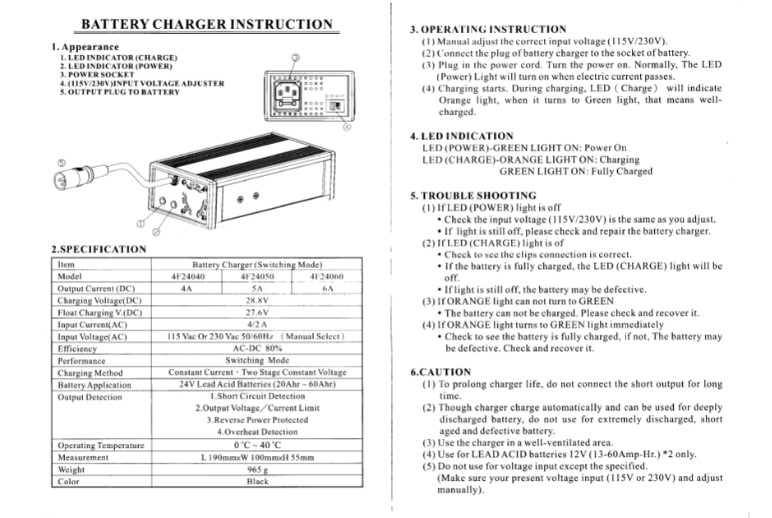

      Product Specification

►Model: 4F24050 (Switching mode)

►Output Current (DC): 5A

►Charging Voltage (DC): 28.8V

►Floating Voltage (DC): 27.6V

►Input Current (AC): 4/2 A

►Input Voltage (AC): 115/230VAC, 50/60HZ (manual select)

►Efficiency: AC-DC 80%

Charging Method: Constant current, two stage constant voltage

Battery Application: 24V Lead Acid Rechargeable Battery (20Ahr~60Ahr)

►Output Detection: short circuit detection, reverse power protected, overheat protection, output voltage / current limit

►Operating Temperature: 0~40

►Dimensions: L190XW100XH55(mm)

►Weight: (approx.) 1080g

►Remarks: Fan: Yes, XLR3 connector

►Our standard pack is without a power cord.

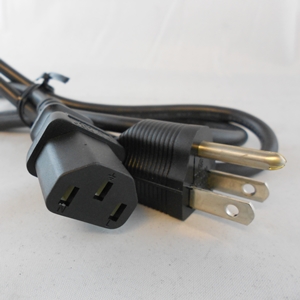

►Optional power cord (10A125V) offered: plug type 2-flat pins & 1 ground (for NEMA 5-15 outlet)

♦USA/ TW Plug Power Cord

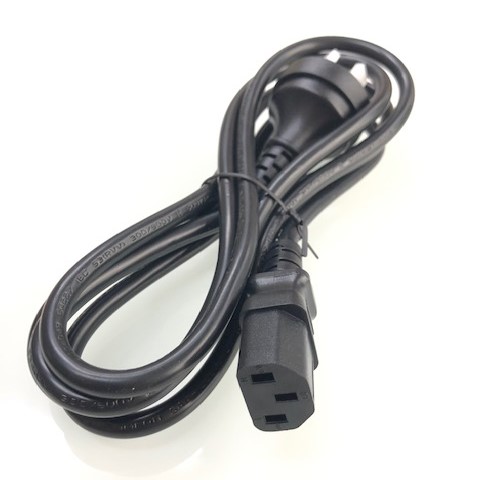

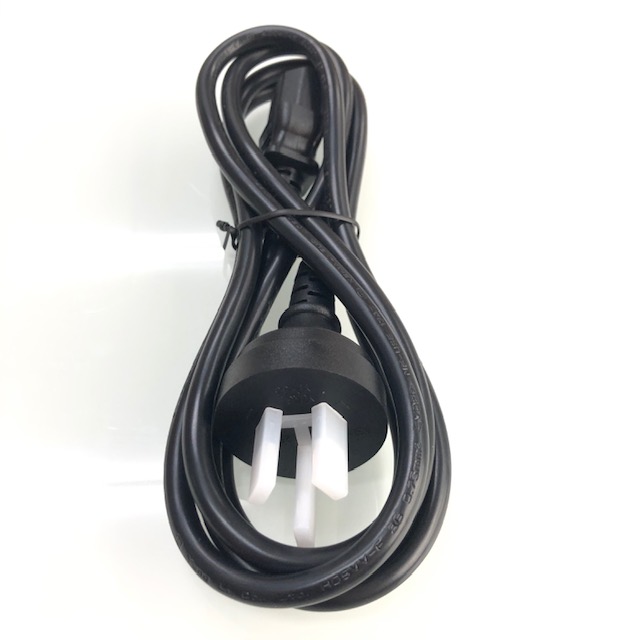

♦AU/ NZ Plug Power Cord

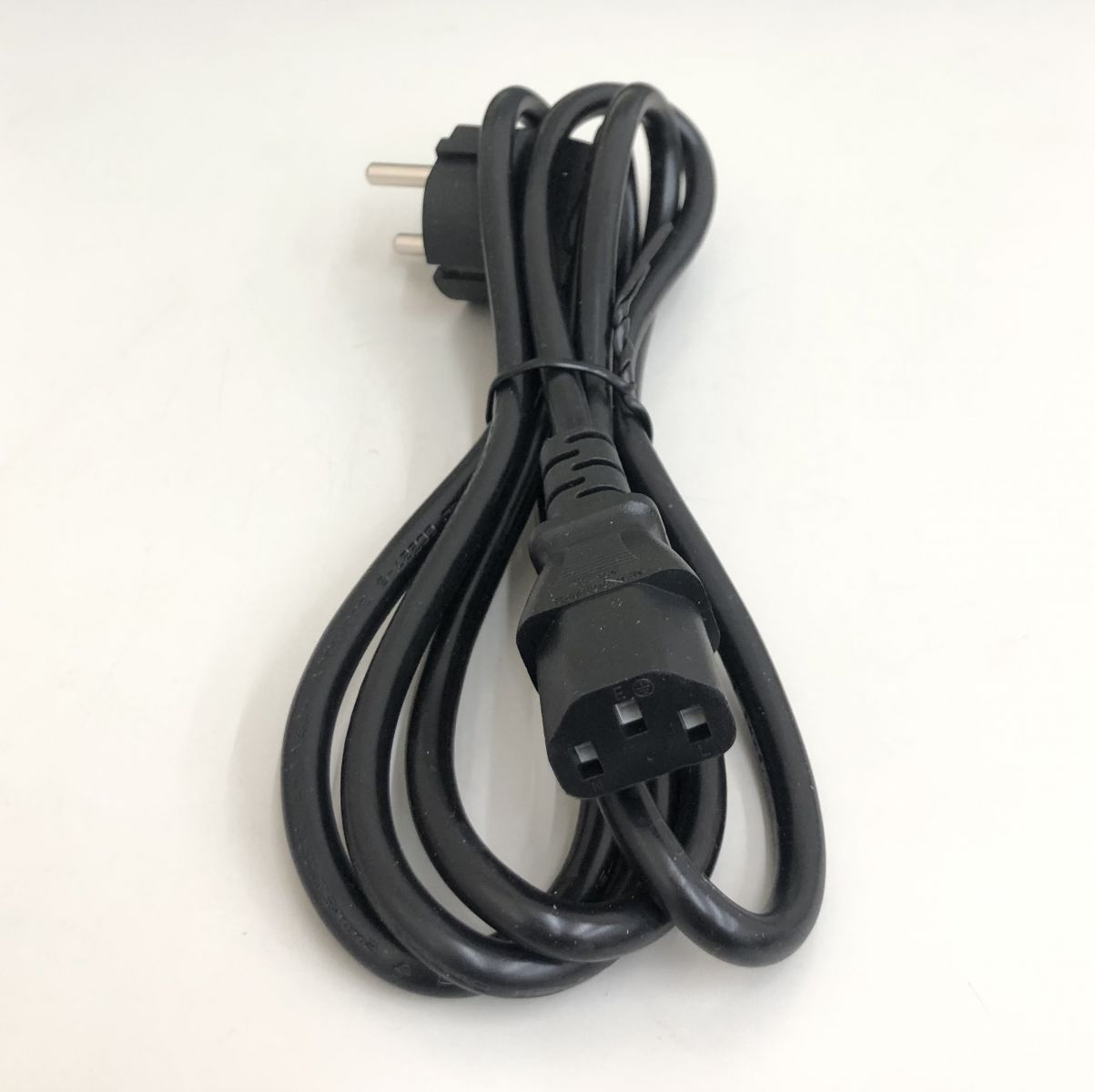

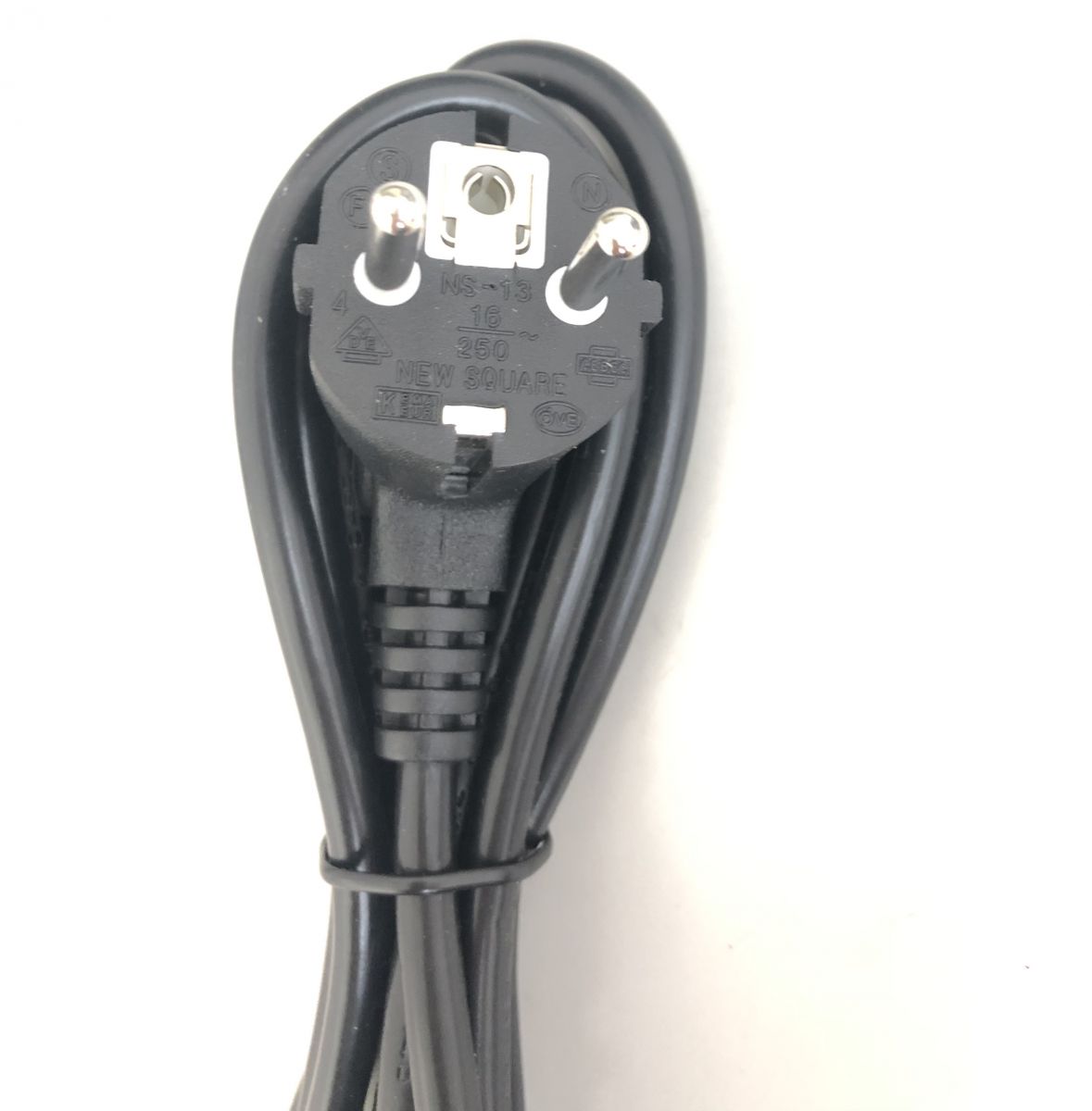

♦EU Plug Power Cord





►Please try extra order a universal adapter (hyperlink) from us or find your suitable power cord locally.
