     Home < Spare Parts < Potentiometers < Speed Potentiometers < 100KVR-T
100KVR-T
Product Category：Potentiometers
Product Type：Speed Potentiometers
Price：Contact us
Description:

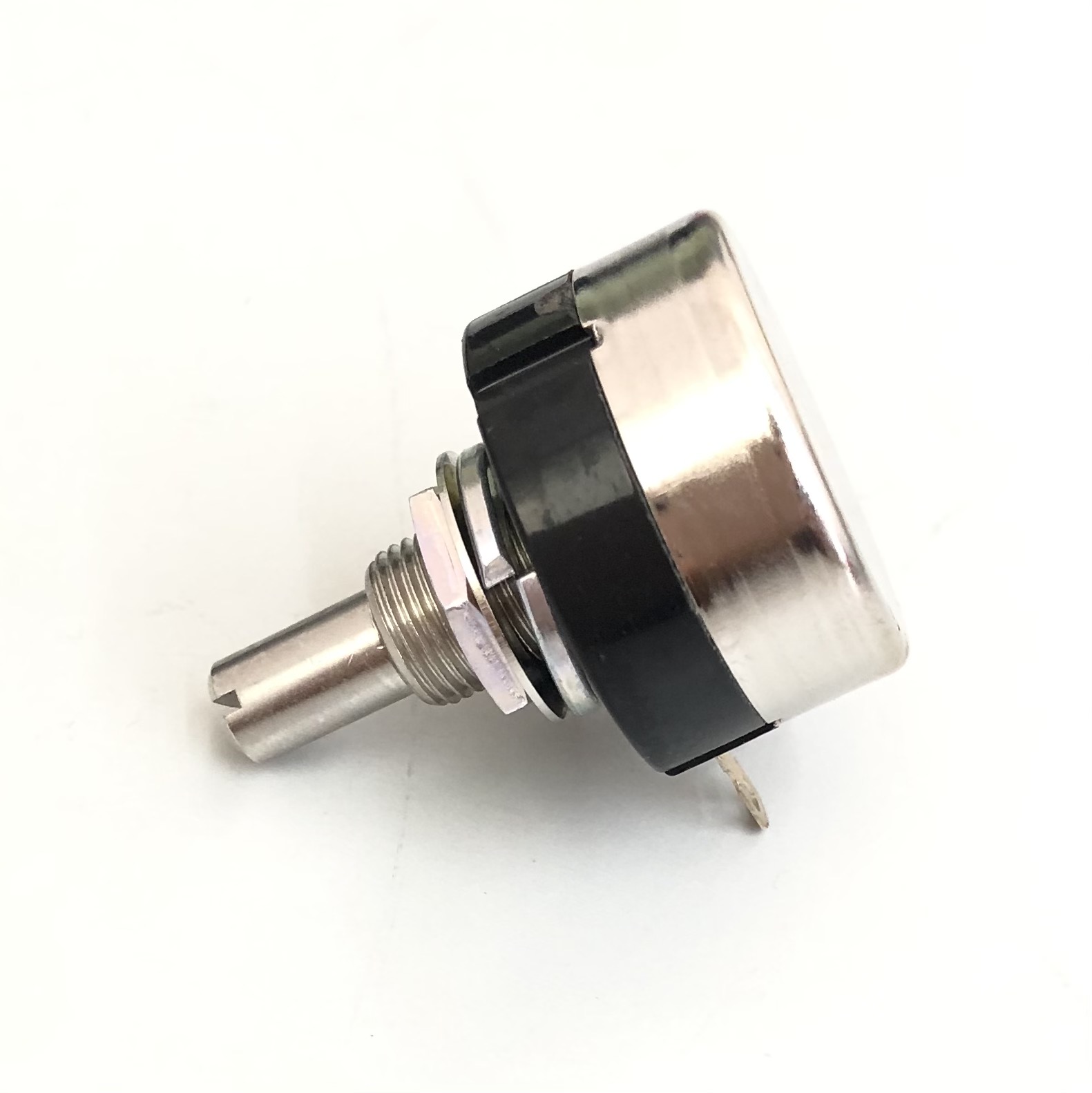

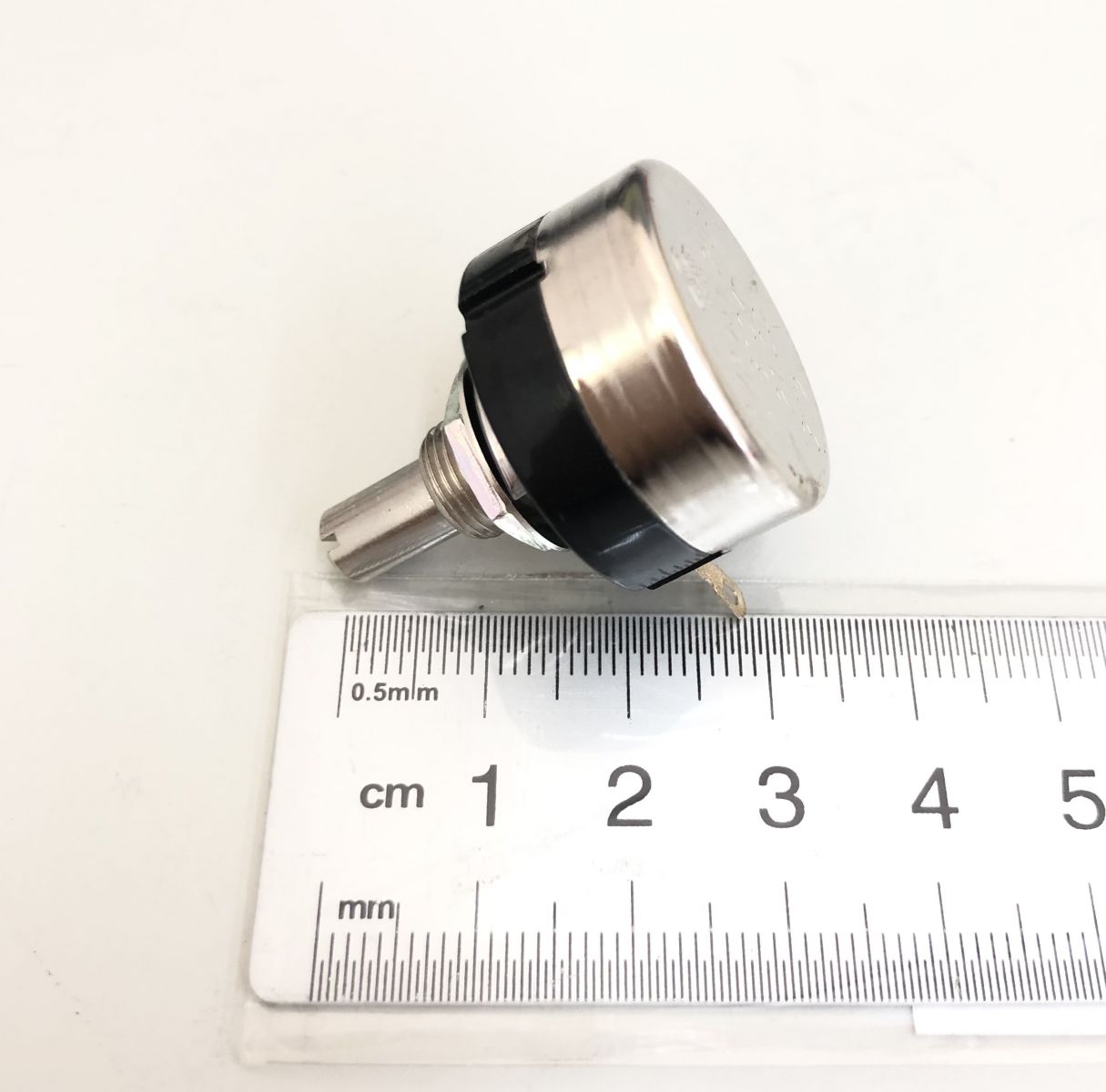

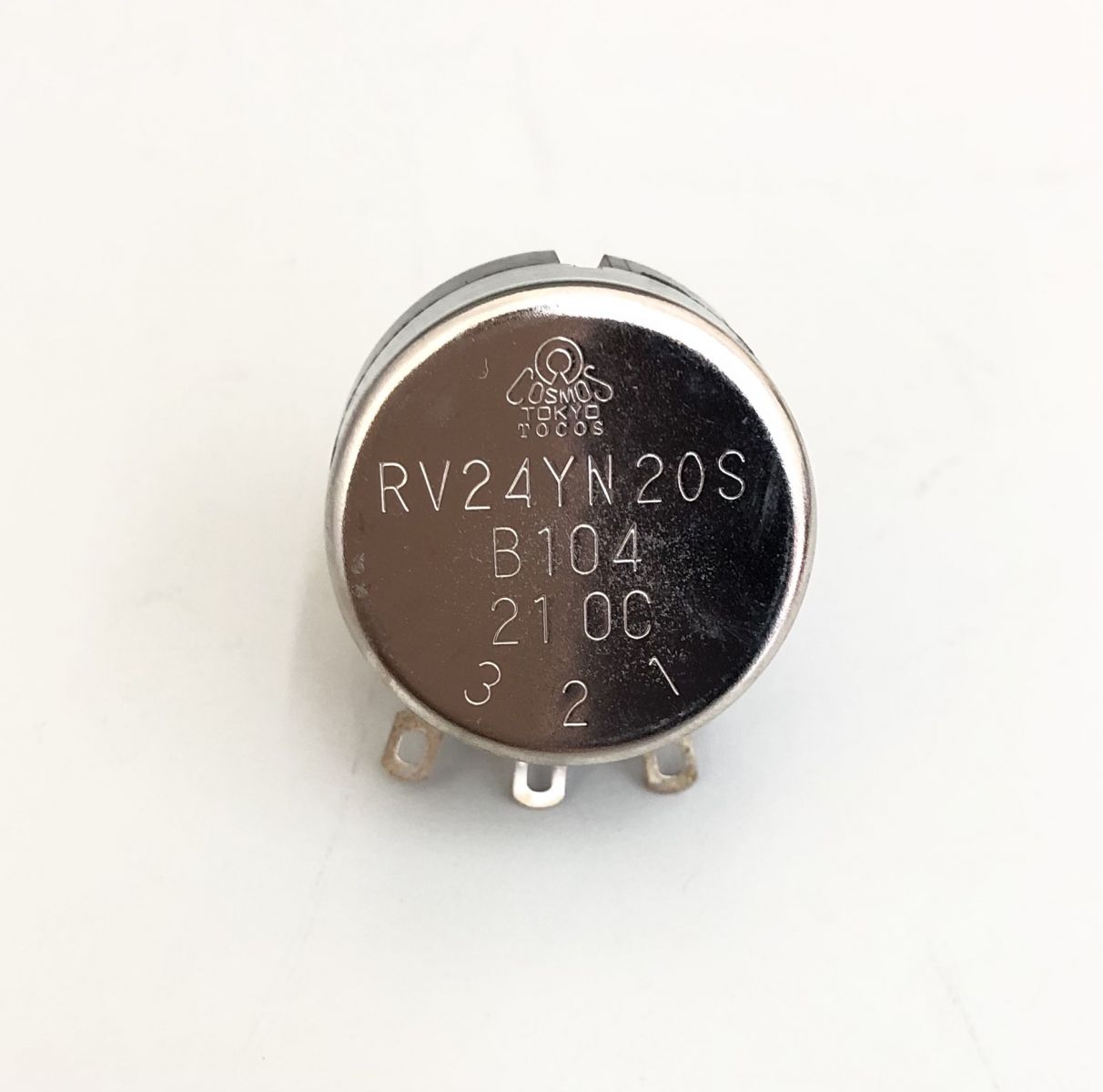

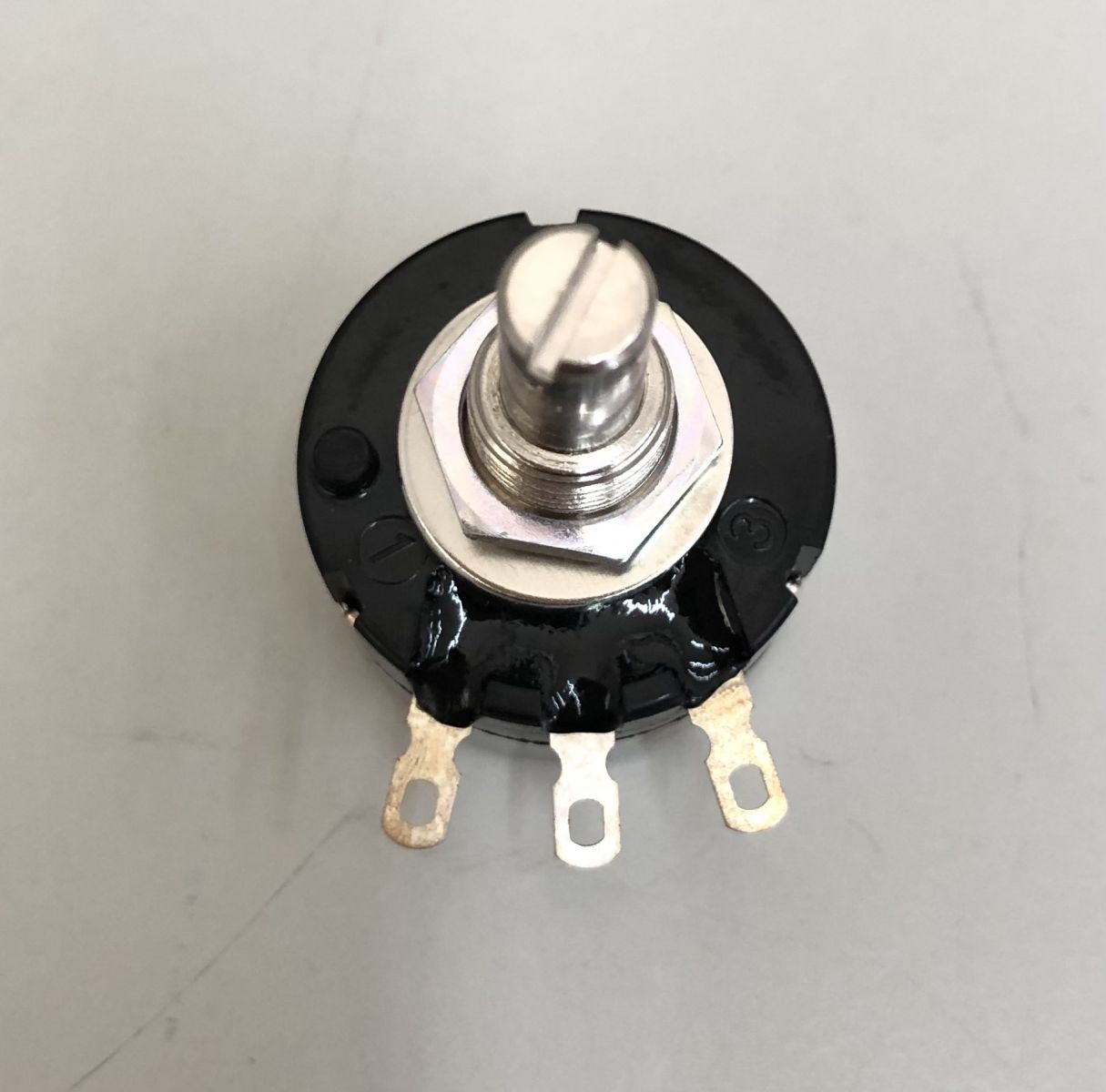

TOCOS Speed Potentiometer 100KVR(RV24YN20S B104)
      Product Specification

TOCOS 100KVR speed potentiometer:

• Part No. (RV24YN20S B104)

• Nominal total resistance value: 100000Ω

• Resistance tolerance: ±10%

• Shaft length: 20 mm

• Size: Φ24 mm

• Rotational life: 15,000 cycles

• Adjustment travel: 300°±5°

• Shaft type: slot, metal shaft, metal bushing

• Resistance taper: linear

• Operating temp. range: -10℃~85℃

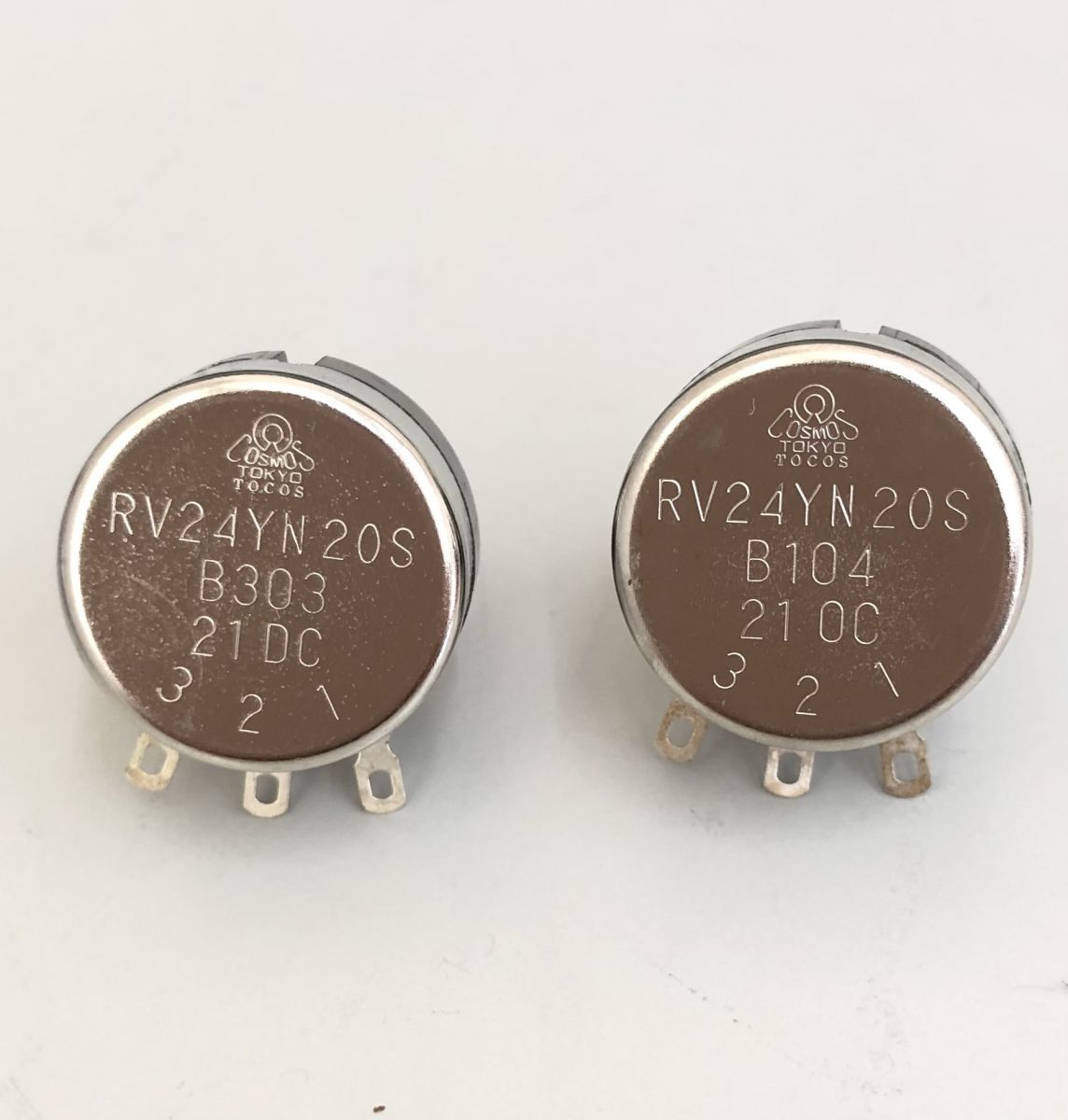

100KVR (B104) / 30KVR (B303)
