DS160
Product Category:Controllers
Product Type:Dynamic Controllers
Price:EXW Taiwan Unit Price
Description:

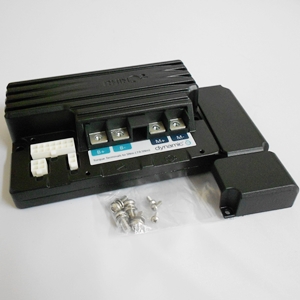

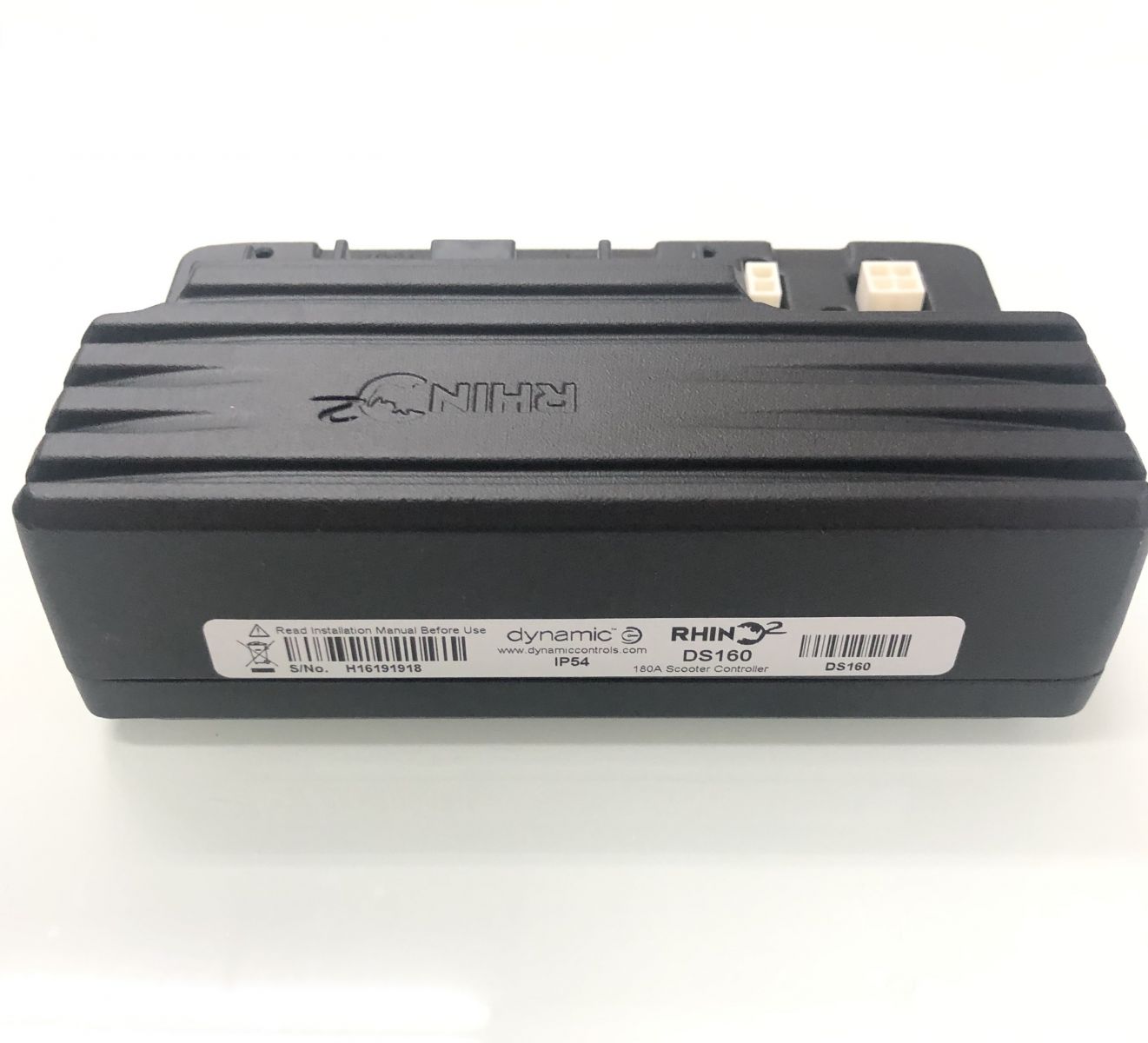

Dynamic Rhino2 160A Mobility Scooter Controller
      Product Specification

►Part No. DS160 (160Amp)

►Peak Current: 160A

►Peak Current Duration: > 3 mins

►Continuous Current: 64A

►Boosted Current: 180A

►Material: Electroplated die-cast aluminum

►Operating Temp: -25°C to 50°C

Protection Rating: IP54

Terminal cover included – An optional terminal cover is available for additional mechanical protection to the terminals

►Size: 153mm X 100mm X44mm

►Weight: 1 kg

Rhino2 controllers are available in 90A, 120A , 160A, 180A  variants (with boosted power up to 100A, 140A and 180A respectively) to meet the requirements of all types of scooter.
